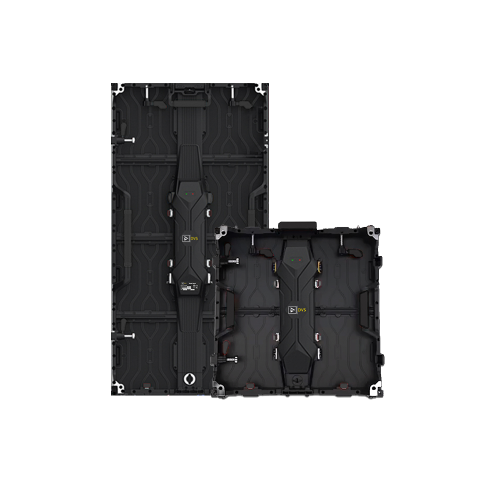

OPTIC ER Series

Perfectly balanced economical performance and reliability

Optic ER series is an entry-level line of LED video panels designed to provide a highly cost-effective, yet reliable modular LED video wall solution for stage installations, mobile use, and light rental applications. It offers a lightweight design with an intuitive, user-friendly hardware design for ease of use and hot-swappable modular components, free of ribbon cables, for ease of serviceability and reliability where it matters most. It offers efficient performance with optimal brightness, contrast ratios, a standard high refresh rate, and easy-to-program NovaStar processing. Delivering exceptional value all while being backed by DVS’ industry-leading Signature warranty.

Request A Quote

Optic ER Key Features

Modular Design

Reliable / Efficient

4,880≥ Hz Refresh Rate

Front & Rear Service Modules

Hot-Swappable PDU

Efficient Imagery

Optic ER Series offers vibrant brightness that can outperform LCD and projector options with a long lifespan and lower maintenance. With a contrast ratio of 5,000:1, it can produce excellent vivid colors and life-size images while maintaining efficient power consumption. Outdoor models offer a punchy 4,500 NITS of output for daylight visibility with IP65 weather resistance. With standard NovaStar processing, a 14-bit grayscale and an enhanced 4,880≥ Hz refresh rate ensure imagery is clear, fluid, and camera-friendly for live streaming applications.

Ease of Use

Quick, Simple Modularity

Optic ER Series is lightweight with simplified locking mechanisms to make setup easy. A modular component design using hard connections, free of internal flat-ribbon cables, provides a greater level of reliability and lower maintenance. It is front- and rear-serviceable with magnetic modules* for easy service and features a detachable, easy-swap power/control unit housing internal components that make user-level serviceability easy and efficient.

*indoor models only

Use Applications

Special Events
Trade Shows
House of Worship
Hospitality

Models & Specifications

Indoor

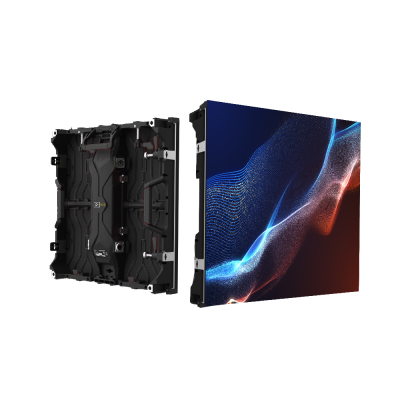

Optic-ER2

2.9mm | 500×500

Optical

Pixel Pitch: 2.97mm

LED Type: SMD1515

Pixel Density: 168×168

Brightness: 800~ NITS

Contrast Ratio: 5,000:1

Viewing Angle: 140° H | 120° V

Refresh Rate: 4,880≥ Hz

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 19.6 x 2.9″ (500x500x76mm)

Weight: 16 lbs (7.2 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 10 Panels

Max Stacking (Ground Stack): 8 Panels

Ingress Protection Rating: IP30

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 87w / panel

Max Power: 190w / panel

Approvals

Ingress Protection Rating: IP30 (Indoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

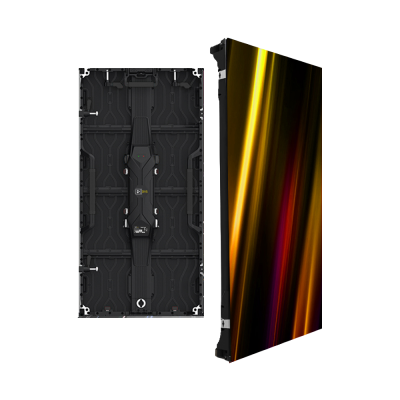

Optic-ER2X

2.9mm | 500×1000

Optical

Pixel Pitch: 2.97mm

LED Type: SMD1515

Pixel Density: 168×336

Brightness: 800~ NITS

Contrast Ratio: 5,000:1

Viewing Angle: 140° H | 120° V

Refresh Rate: 4,880≥ Hz

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 39.2 x 2.9″ (500x1000x76mm)

Weight: 29 lbs (13.1 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 8 Panels

Max Stacking (Ground Stack): 4 Panels

Ingress Protection Rating: IP30

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 120w / panel

Max Power: 240w / panel

Approvals

Ingress Protection Rating: IP30 (Indoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

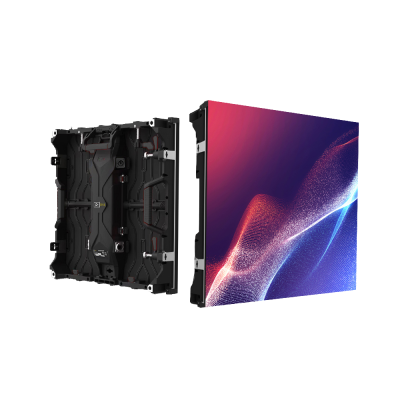

Optic-ER3

3.9mm | 500×500

Optical

Pixel Pitch: 3.91mm

LED Type: SMD2020

Pixel Density: 128×128

Brightness: 800~ NITS

Contrast Ratio: 5,000:1

Viewing Angle: 140° H | 120° V

Refresh Rate: 4,880≥ Hz

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 19.6 x 2.9″ (500x500x76mm)

Weight: 16 lbs (7.2 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 10 Panels

Max Stacking (Ground Stack): 8 Panels

Ingress Protection Rating: IP30

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 87w / panel

Max Power: 190w / panel

Approvals

Ingress Protection Rating: IP30 (Indoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

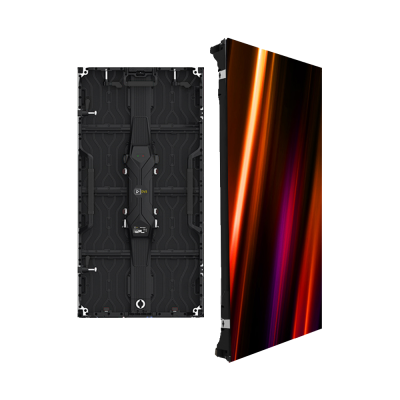

Optic-ER3X

3.9mm | 500×1000

Optical

Pixel Pitch: 3.91mm

LED Type: SMD2020

Pixel Density: 128×128

Brightness: 800~ NITS

Contrast Ratio: 4,000:1

Viewing Angle: 140° H | 120° V

Scan Rate: 1/16

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 39.2 x 2.9″ (500x1000x76mm)

Weight: 29 lbs (13.1 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 8 Panels

Max Stacking (Ground Stack): 4 Panels

Ingress Protection Rating: IP30

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 120w / panel

Max Power: 240w / panel

Approvals

Ingress Protection Rating: IP30 (Indoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

Outdoor

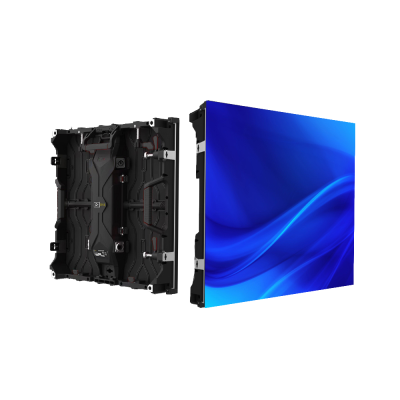

Optic-ER3IP

3.9mm | 500×500

Optical

Pixel Pitch: 3.91mm

LED Type: SMD1415

Pixel Density: 128×128

Brightness: 4,500~ NITS

Contrast Ratio: 5,000:1

Viewing Angle: 140° H | 120° V

Refresh Rate: 4,880≥ Hz

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 19.6 x 2.9″ (500x500x76mm)

Weight: 16 lbs (7.2 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 10 Panels

Max Stacking (Ground Stack): 8 Panels

Ingress Protection Rating: IP65

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 87w / panel

Max Power: 190w / panel

Approvals

Ingress Protection Rating: IP65 (Temporary Outdoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

Optic-ER3X

3.9mm | 500×1000

Optical

Pixel Pitch: 3.91mm

LED Type: SMD1415

Pixel Density: 128×256

Brightness: 4,500~ NITS

Contrast Ratio: 5,000:1

Viewing Angle: 140° H | 120° V

Refresh Rate: 4,880≥ Hz

Grayscale: 14-Bit

Physical

Material: Die-Cast Aluminum

Dimensions: 19.6 x 19.6 x 2.9″ (500x500x76mm)

Weight: 16 lbs (7.2 kg)

Serviceability: Front/Rear

Mounting Options: Fly / Ground Stack

Max Hanging (Flown): 10 Panels

Max Stacking (Ground Stack): 8 Panels

Ingress Protection Rating: IP65

Control System

Control System: NovaStar

Receiving Card: NovaStar A5S

Connections/Electrical

Power Connection: PowerCON IN/THRU

Signal Connection: EtherCON IN/THRU

Voltage: 120-240v

Average Power: 120w / panel

Max Power: 240w / panel

Approvals

Ingress Protection Rating: IP65 (Temporary Outdoor Use Only)

Certifications: cMETus, FCC, CE, ROHS, EMC

Accessories

LED Processor

The gateway between your input sources and LED screen. Diverse functionality and performance for any application.

View Processing Options

RB Rigging Bar

Available in single and double widths.

Flight Case

Rolling, stackable cases for storage and transportation.
