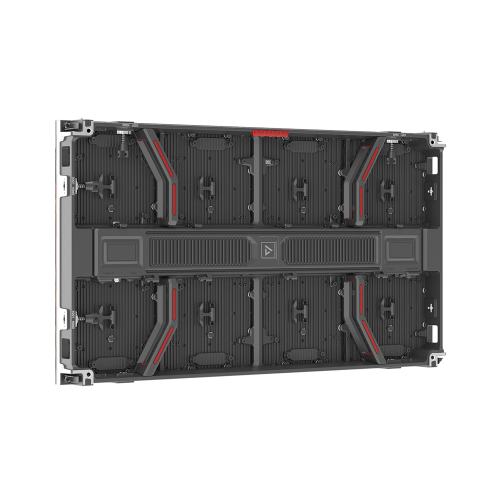

DPHX-rear-quarter-trans

DioPlex HX Series

DioPlex HX is a modern, high-resolution semi-outdoor LED video display panel designed for outdoor permanent installations where crystal clear imagery, bold colors, and brightness are needed. DioPlex HX incorporates MicroLED-in-Package (MIP) technology to deliver exceptional image vibrancy, even in bright daylight conditions, where it can deliver a 4,000 NITS brightness with 20,000:1 contrast ratio for deep black levels and ambient light absorption with a special UV-resistant coating for lower maintenance. Coming in a cost-effective 43″ modular size with a native 16:9 aspect ratio, it incorporates energy-saving common-cathode technology for lower power consumption and less heat output, allowing it to integrate a fan-less, convective heat-sink design for enhanced reliability and high-temperature operation.  The modular IP66-rated weatherproof design resists the elements and allows for flexible installation with full-front and rear serviceability for maximum ROI in any direct-view outdoor application.

Request A Quote

DioPlex HX Key Features

High-Brightness MIP LED

Sharp visuals with exceptional contrast and vibrancy

High-Efficiency

Common-cathode, fan-less design with low power consumption

Large 16:9 Ratio
IP66-Rated Weatherproof
Advanced Processing
Full Front & Rear Serviceability

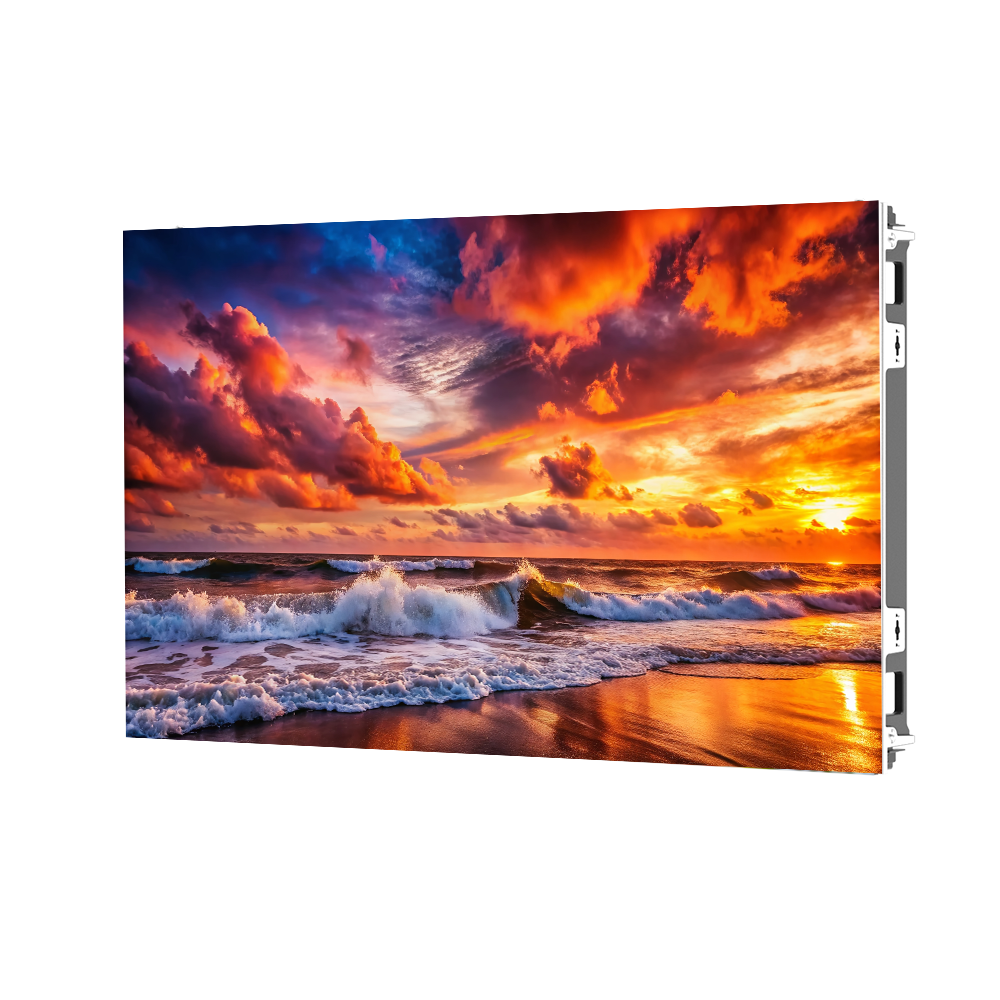

Maximum Vibrancy

Crisp Resolution, Bright Visibility, Bold Colors

DioPlex HX features ultra-fine pixel pitches and high pixel densities to deliver crisp imagery where high resolutions and close viewing distances are critical. Eliminating the challenges and limitations of outdoor displays of the past, DioPlex HX incorporates MicroLED-In-Package (MIP) LED technology to deliver an exceptional brightness level of 4,000 NITS. A deep black coating achieves an ultra-high contrast ratio of 20,000:1 for image vibrancy with bold color quality and ambient light absorption for better visibility at a lower power consumption. It features high-refresh rates and high grayscale capabilities that are paired with industry-leading processing to support HDR10, HLG. A protective pixel coating ensures maximum pixel durability and waterproofing of the LED surface for enhanced durability against prolonged exposure to the elements for a true low-maintenance design.

Maximum Efficiency

Efficiency for Reliability

DioPlex HX series deepblack MIP design absorbs ambient light for better visibility at lower power consumption levels. A common-cathode driver design optimizes light output while reducing power draw and thermal output for greater efficiency that contributes to the longevity of components. The fully fanless, heatsink design ensures optimal thermal management while keeping a fully sealed, weatherproof design to ensure resilience against the elements and reliable operation in extreme ambient temperatures with fewer maintenance points.

Maximum Hardware Flexibility

Ease of Installation and Beyond...

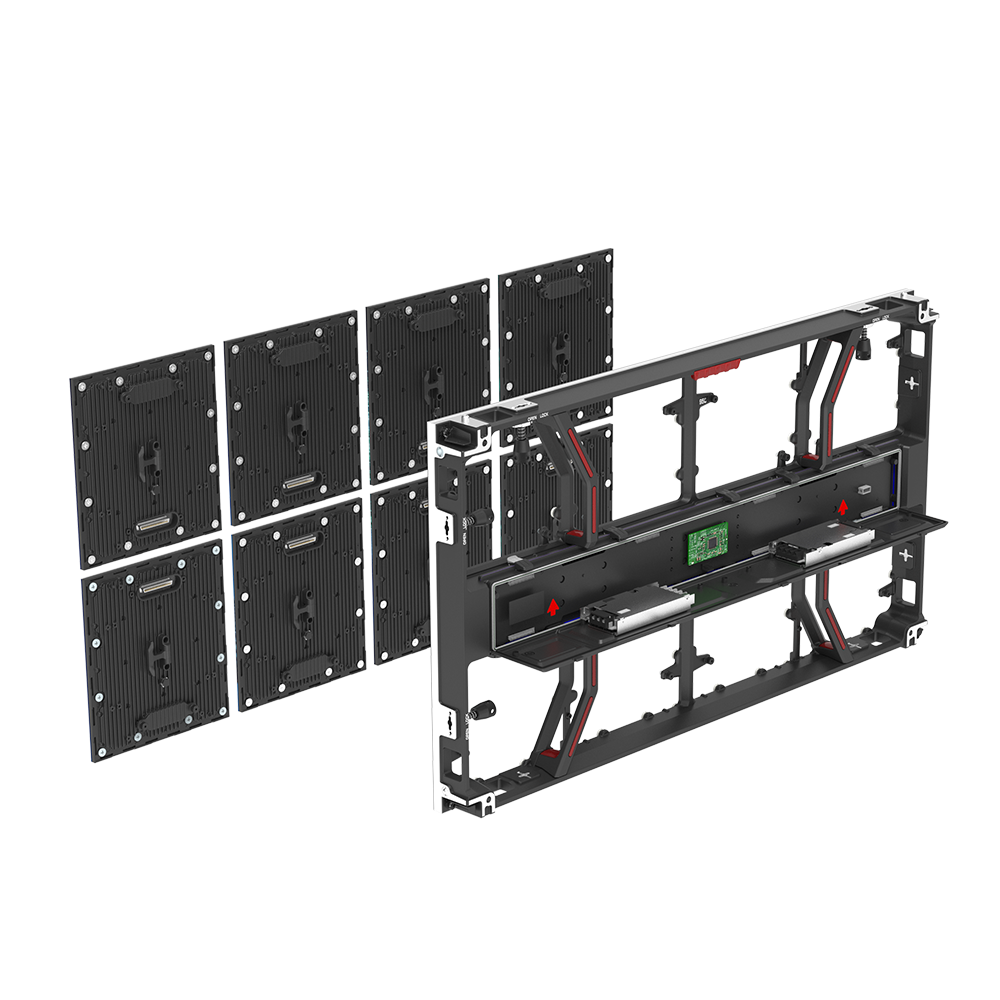

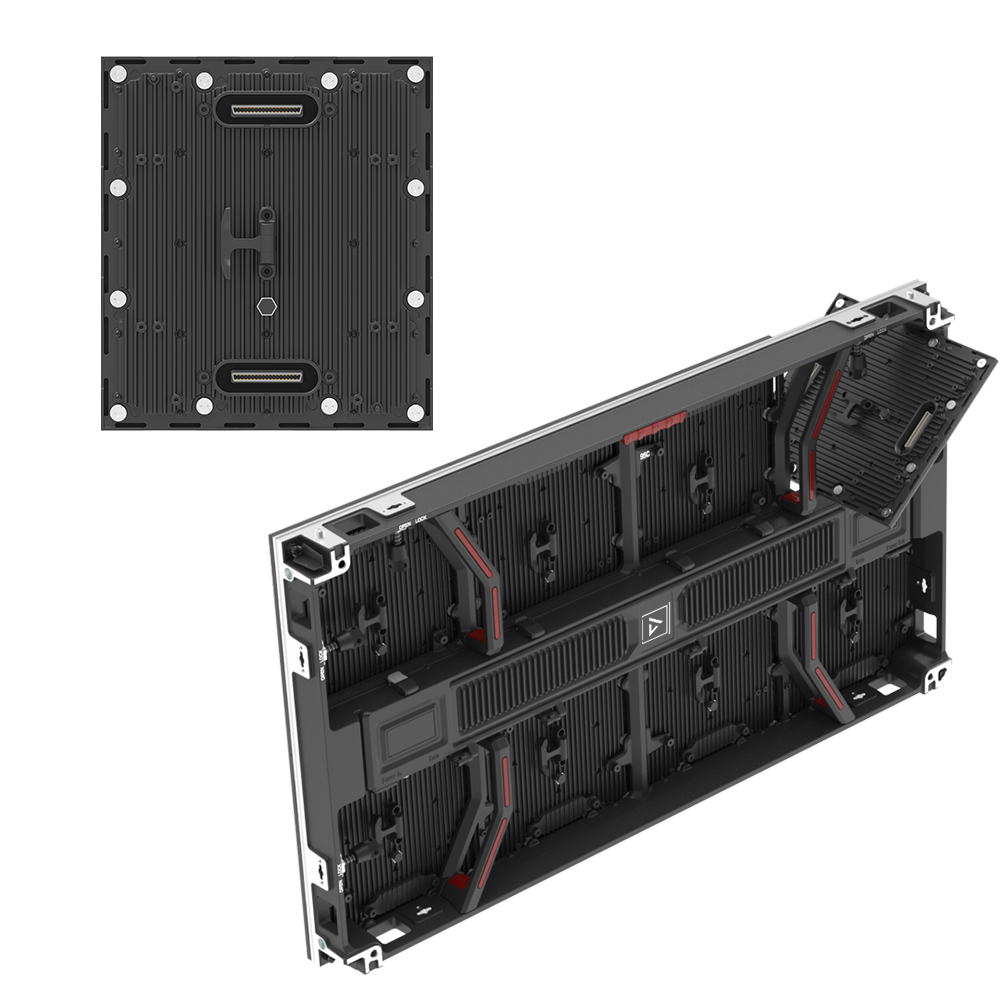

DioPlex HX is uniquely designed to be fully front-and-rear serviceable from a single unit with no compromise to its sealed weatherproof structure. Making it ideal for wall mount, hanging, or pole-mounted installations. It features a 43″ diagonal design for a more economical cost of entry that maintains a 16:9 aspect ratio and can be ideal for outdoor LCD replacements. The modular frame design allows for easy installation from either side with accessible mounting holes. All modules are fully magnetic with wind-enhancing safety screws (for pole-mounted installations) and feature direct, ribbon-cable-free connectivity between components for safer, more reliable operation that is uniquely easier to install and maintain down the line.

470949426_18208823296288940_2988970454963777633_n

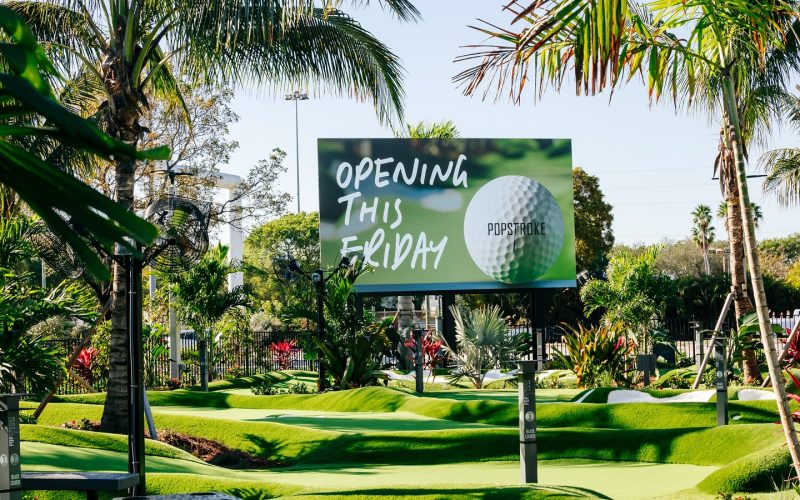

Use Applications

  • Direct View Outdoor Installations

  • 4K / 8k Outdoor Installations

  • Hospitality

  • Amphitheaters & Outdoor Venues

  • Outdoor Retail Experiences

  • Sports Complexes & Stadiums

  • Outdoor Entrances

Models & Specifications

DioPlex HX-1.2

Pixel Pitch: 1.25mm

LED Type: MIP Flipchip Common Cathode (+GOB)

Pixel Density: 768×432

Brightness: 4,000~ NITS

Contrast Ratio: 20,000:1

Viewing Angle: 170° H | 170° V

Refresh Rate: 3,840≥ Hz

Scan Rate: 1/30

Grayscale: 18-Bit+

DioPlex HX-1.5

Pixel Pitch: 1.56mm

LED Type: MIP Flipchip Common Cathode (+GOB)

Pixel Density: 640×360

Brightness: 4,000~ NITS

Contrast Ratio: 20,000:1

Viewing Angle: 170° H | 170° V

Refresh Rate: 3,840≥ Hz

Scan Rate: 1/30

Grayscale: 18-Bit+

DioPlex HX-1.8

Pixel Pitch: 1.87mm

LED Type: MIP Flipchip Common Cathode (+GOB)

Pixel Density: 512×288

Brightness: 4,000~ NITS

Contrast Ratio: 20,000:1

Viewing Angle: 170° H | 170° V

Refresh Rate: 3,840≥ Hz

Scan Rate: 1/27

Grayscale: 18-Bit+

DioPlex HX-2.5

Pixel Pitch: 2.50mm

LED Type: MIP Flipchip Common Cathode (+GOB)

Pixel Density: 384×216

Brightness: 4,000~ NITS

Contrast Ratio: 20,000:1

Viewing Angle: 170° H | 170° V

Refresh Rate: 3,840≥ Hz

Scan Rate: 1/32

Grayscale: 18-Bit+
Material: Die-Cast Aluminum

Dimensions: 37.7″ W x 21.2″ H x 2.9″ D  (960x540x73mm) / 43″ Diagonal

Weight: 39.6lbs (17.9kg)

Serviceability: Front / Rear

Ingress Protection Rating: IP66 (Fixed Outdoor Installation)*
*Direct UV exposure may degrade surface coating over an extended period of time.
Control System: NovaStar

Receiving Card: NovaStar A10S Pro  | NovaStar CA50E

Supported Inputs: HDMI, DVI, VGA, SDI

Frame Rate: 60hz
Power Connection: IPPOWERCON TRUE1 IN/THRU

Signal Connection: IP-ETHERCON IN/THRU

Voltage: 120-240v

Average Power: 120w / panel

Max Power: 360w / panel
cETLus, FCC, CE, RoHS, EMC

Accessories

LED Processor

The gateway between your input sources and LED screen. Diverse functionality and performance for any application.

View Processing Options

Mounting Frame & Trim Kit

Rigging Bar
